ITEM SPECIFICS
-
Brand
WONIL ELECTRIC WIRE
-
origin
Republic of Korea
-
Size(Capacity)
600V
-
Dimensions
Cross-sectional Area : 0.823㎟, 1.31㎟
-
Features
STANDARDS : ASTM B8, ASTM B3, ASTM B172, UL 1581, UL 2556, UL 66
PRODUCT DESCRIPTION
SCOPE AND DEFINITONS
- This standard specifies the requirements for 600V single-conductor, Fixture wires.
- This standard specifies the requirements for 600V single-conductor, Fixture wires.
APPLICATION
- This type may be used as fixture wire as specified in the National Electrical Code
And wire (Fixture wire) are recommended in most types of commercial and industrial applications where resistance to mechanical abuse is required.
- This type may be used as fixture wire as specified in the National Electrical Code
And wire (Fixture wire) are recommended in most types of commercial and industrial applications where resistance to mechanical abuse is required.

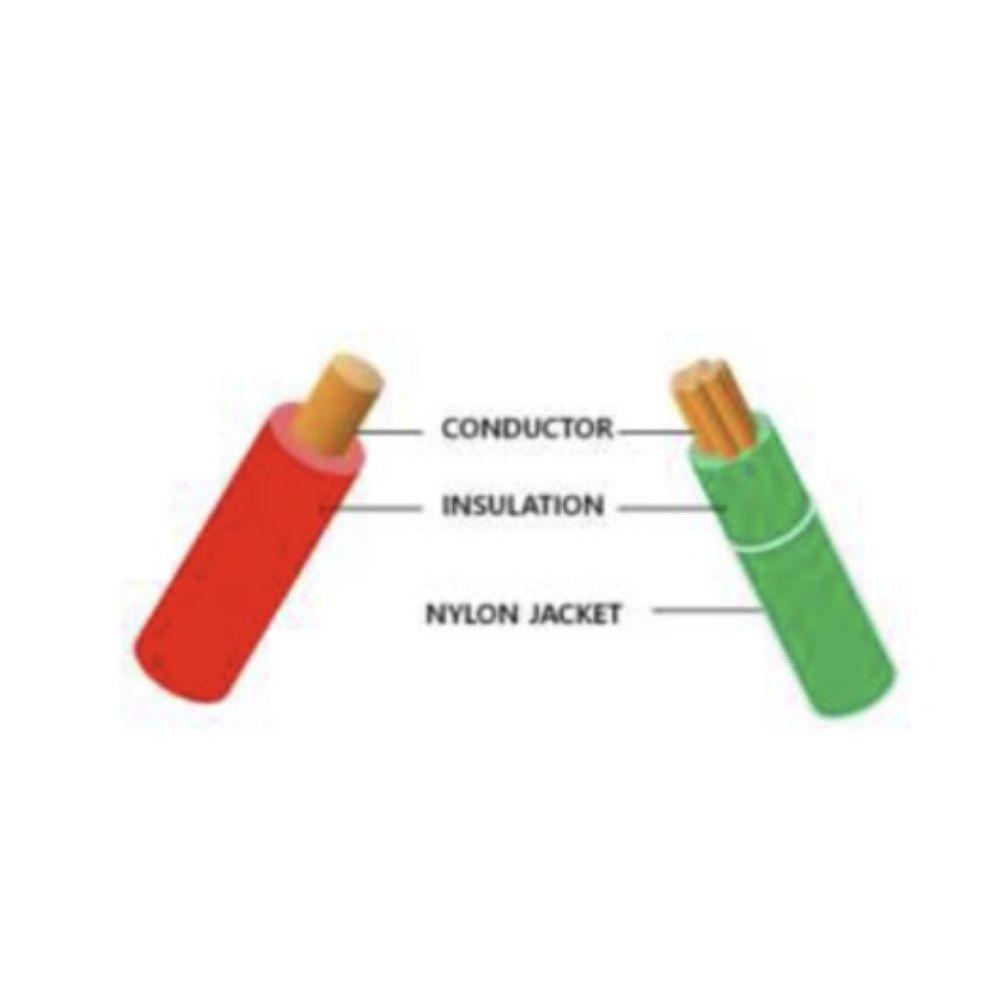

CONDUCTORS
- Solid or Stranded bare copper per ASTM B 3 ASTM B 8 and ASTM B 172
- Solid or Stranded bare copper per ASTM B 3 ASTM B 8 and ASTM B 172
INSULATION
- Color coded Polyvinyl Chloride (PVC)
- Heat and moisture resistant
- Flame retardant compound per UL 83(QMTT2 PVC compound listed by UL)
- Color coded Polyvinyl Chloride (PVC)
- Heat and moisture resistant
- Flame retardant compound per UL 83(QMTT2 PVC compound listed by UL)
PRODUCT TYPE AND RATE
Fixture wire (Thermoplastic Innsulated ) is rated 600 V and is designated as follows:
- TF : Type TF cables are primarily used as fixture wires for 600V applications at temperatures not to exceed 60 C in dry locations.
- TFN : Type TFN cables are primarily used as fixture wires for 600V applications at temperatures not to exceed 90 C in dry locations.
- TFF : Type TFF cables are primarily used as fixture wires for 600V applications at temperatures not to exceed 60 C in dry locations.
- TFFN : Type TFFN cables are primarily used as fixture wires for 600V applications at temperatures not to exceed 90 C in dry locations.
Fixture wire (Thermoplastic Innsulated ) is rated 600 V and is designated as follows:
- TF : Type TF cables are primarily used as fixture wires for 600V applications at temperatures not to exceed 60 C in dry locations.
- TFN : Type TFN cables are primarily used as fixture wires for 600V applications at temperatures not to exceed 90 C in dry locations.
- TFF : Type TFF cables are primarily used as fixture wires for 600V applications at temperatures not to exceed 60 C in dry locations.
- TFFN : Type TFFN cables are primarily used as fixture wires for 600V applications at temperatures not to exceed 90 C in dry locations.
STANDARDS & REFERENCE
- ASTM B8 Standard : Specification for Concentric Lay Stranded Copper Conductors, Hard, Medium Hard, or Soft
- ASTM B3 Standard :Specification for Soft or Annealed Copper Wire
- ASTM B172 : Standard Specification for Rope-Lay-Stranded Copper Conductors Having Bunch Stranded Members, for Electrical Conductors
- UL 1581 : Reference Standard for Electrical Wires, Cables, and Flexible Cords
- UL 2556 : Wire and Cable Test Methods
- UL 66 : Fixture wire
- ASTM B8 Standard : Specification for Concentric Lay Stranded Copper Conductors, Hard, Medium Hard, or Soft
- ASTM B3 Standard :Specification for Soft or Annealed Copper Wire
- ASTM B172 : Standard Specification for Rope-Lay-Stranded Copper Conductors Having Bunch Stranded Members, for Electrical Conductors
- UL 1581 : Reference Standard for Electrical Wires, Cables, and Flexible Cords
- UL 2556 : Wire and Cable Test Methods
- UL 66 : Fixture wire
PAYMENTS DETAILS
This supplier supports payments for offline orders
- Telegraphic Transfer : T/T
- Name : Lee Chan Jae
SHIPPING
Shipping from :
Republic of Korea
- 26-40 Chorok-ro 210beon-gil Yanggam-myeon, Hwaseong-si, Gyeonggi-do (18632)
Wonil Electric Wire co.,ltd
The person in charge
Chanjae LeeAddress
26-40 Chorok-ro 210beon-gil Yanggam-myeon, Hwaseong-si, Gyeonggi-do (18632)
Introduction

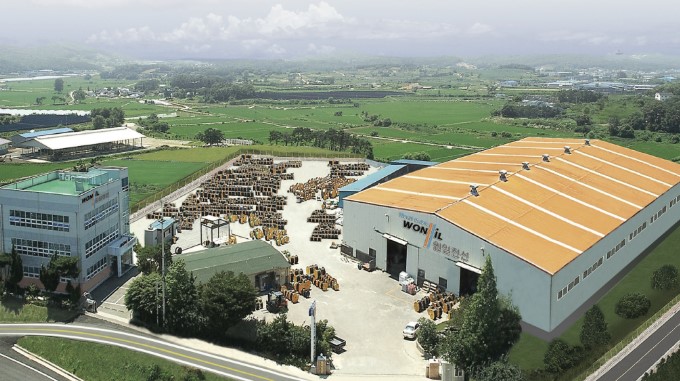

Company Overview
Founded in 1995, WONIL CABLE CO., LTD. is a Korean manufacturer specializing in low voltage insulated wires and cables for industrial, power, and building applications.With nearly 30 years of
experience, WONIL has grown into a globally trusted brand recognized for its technical innovation, certified quality, and customer focused manufacturing.
Coporate Vision
At WONIL, we believe that cables are more than just conductors they are the lifelines of modern
industries. Our mission is to deliver reliable, safe, and high performance cables that connect people, power innovation, and build sustainable value for our partners around the world.
-
- Business Type :
- Manufacturer
-
- Main Product :
- Eletrice wire
-
- Established :
- 2000-01-17
-
- Total Annual Revenue :
-
- Total Employees :
- 11~50 people

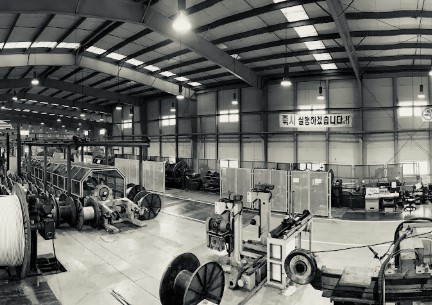

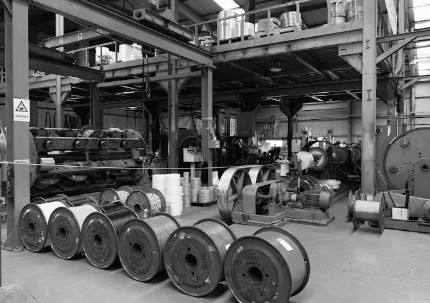

COMPANY ENVIRONMENT
