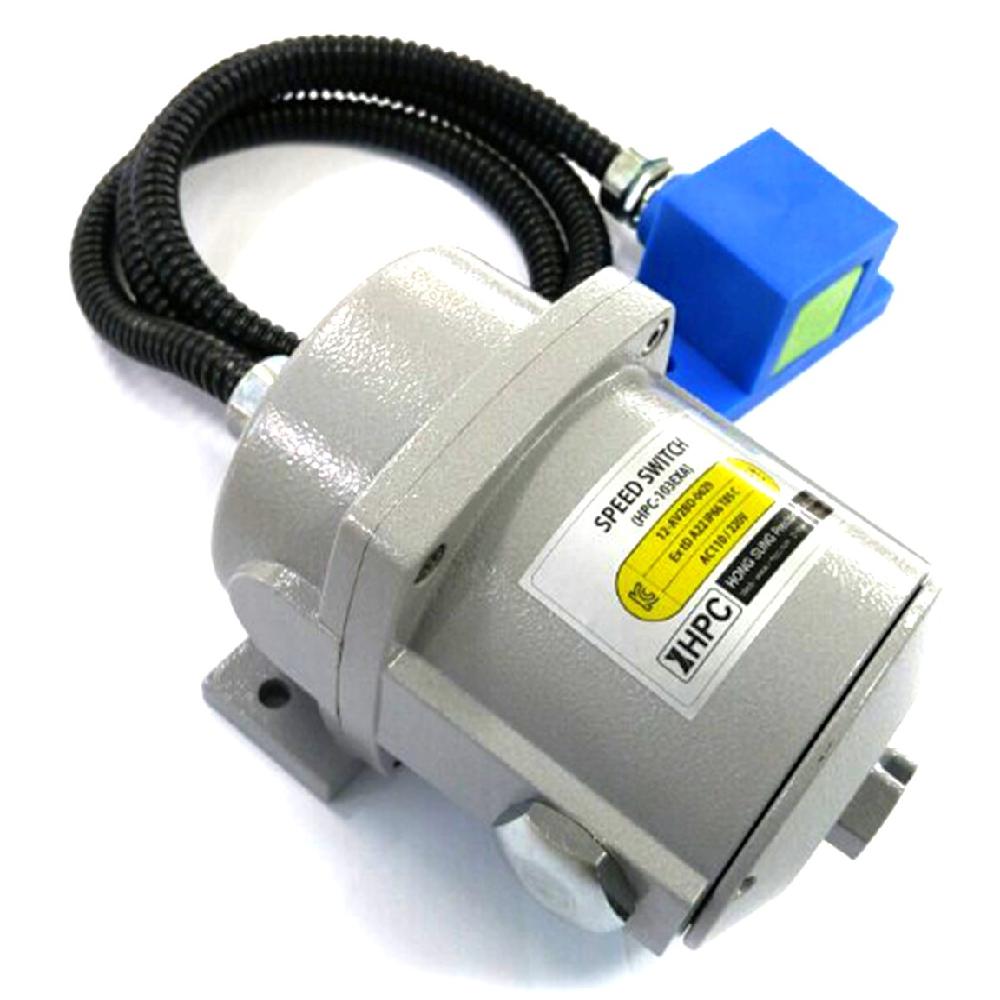

- SPEED CONTROL SWITCH measure the speed through non-contact sensor.
- It can detect rotation speed.
- Accurately detect machinery speed using digital control way
- Easy to install and maintenance for being divided into sensor and body
Howtouse

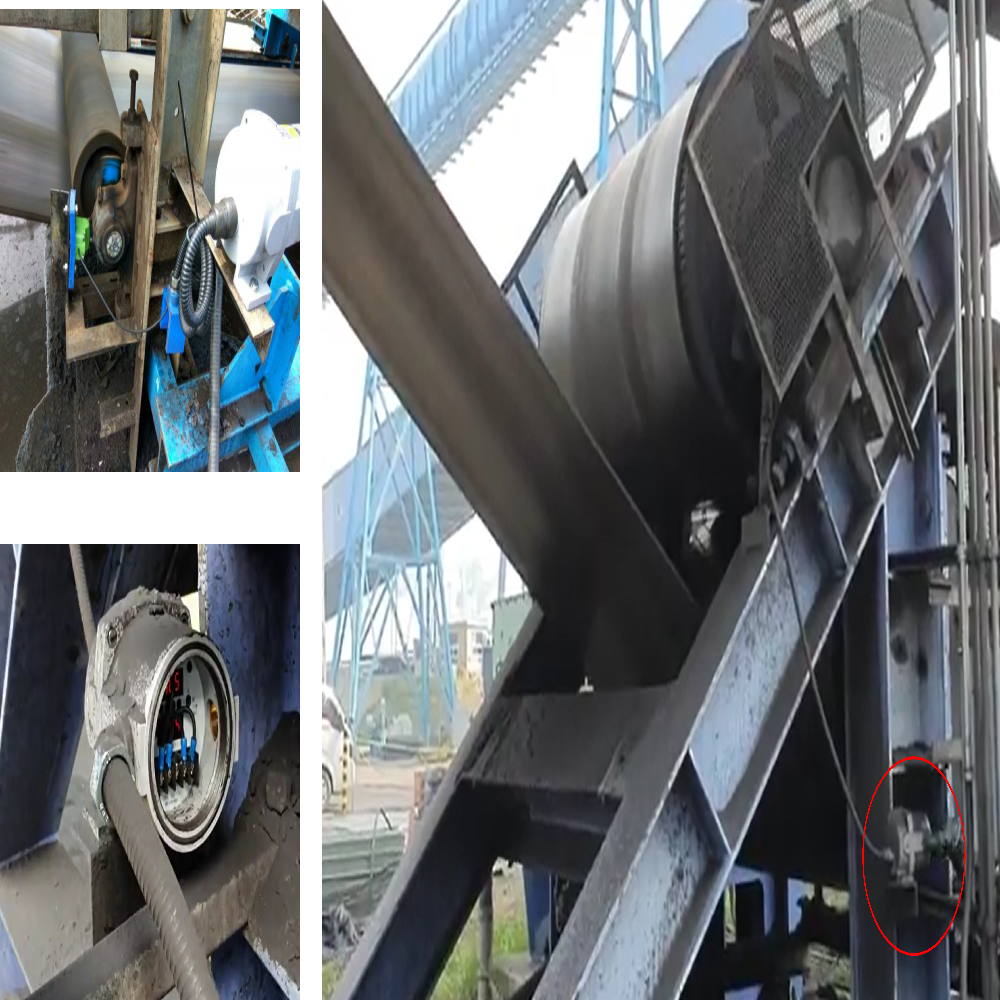

- Please install speed control switch where you want to measure the speed of rotation thing.
- Be aware that distance between things of rotation and sensor must be maximum 20mm.
- To sense the sensor, rotation thing must include magnetism.
- Do not target rotation shaft(In case of sensing the rotating thing like a shaft, sensor can’t measure correct speed).
- The first RPM is St05
- In preparation that rotating thing is slow, please adjust delay time.
- Because there is term that rotation thing need time to reach the set RPM.
- After finishing setting, let switch operate.
Cautions

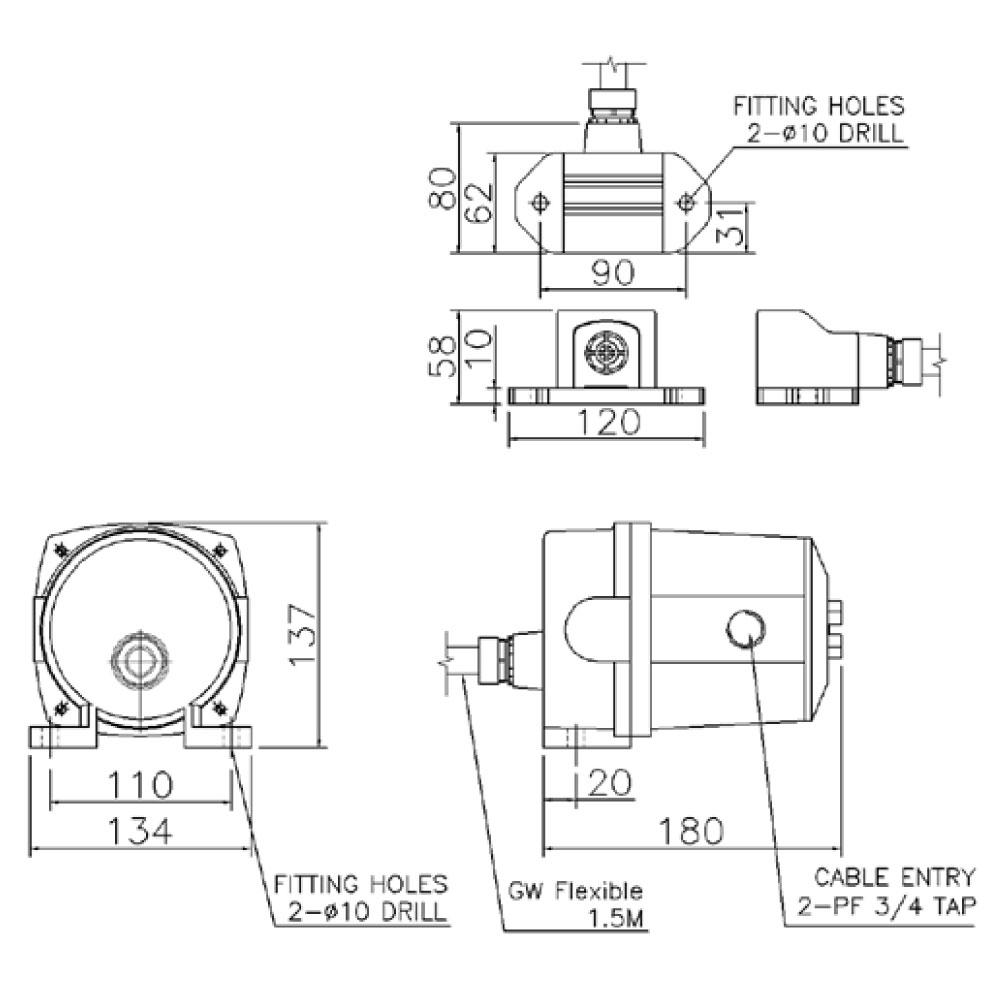

- The standard of inlet and outlet is PF3/4". Explosive cable grand (IP66 or higher) shall be used. Be careful not to seal the inlet and outlet, as this may cause water resistance.
- When disassembling and reassembling the cover for a wiring connection, tighten the bolts on each part as much as possible to maintain tightness.
- Do not arbitrarily dismantle the fastening bolts on the body. If there is a problem with the product and the bolt needs to be dismantled,
be careful not to dislodge the O-ring when re-engaging, and tighten the bolts as much as possible to maintain confidentiality.
- Installation that differs from electrical specifications can cause problems with the product. Use product as suitable specifications.
