Feature
- It can be used regardless of whether it is inside or outside.
- Lightweight aluminum die-casting products with excellent mechanical strength.

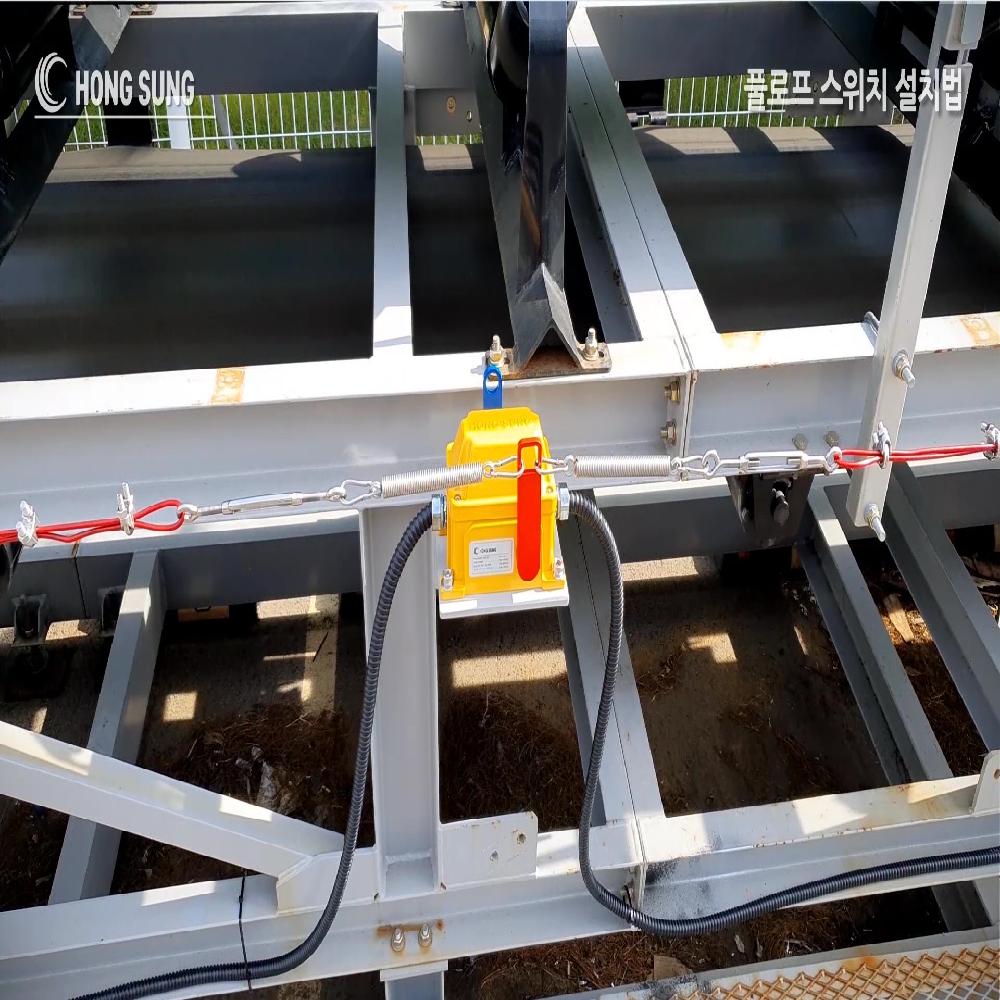

- The tension springs provided on the both sides of the operation lever enable detection of wire rope breakage and tension.
- Two micro switches are installed inside the product and the contact signal is highly reliable.
- User can adjust proper tension of wire rope.
- Visually check the spring for damage and condition.
- Enable to detection of wire rope breakage and tension
Specification
Contact capacity
- 15A 125VAC
- 10A 250VAC
Number of contacts
- SPDT X 2EA
Body
- Aluminum die casting
Type
- Manual return
How to use
- Operation lever tilted about 15 °when wire rope is pulled.
- The conveyor emergency stop is maintained until the reset lever is manually returned.
- When the reset lever is pulled, the emergency stop operation status is released.
- Neutral position of the operation lever can be adjustable through Turn buckle and Tension spring.
Cautions

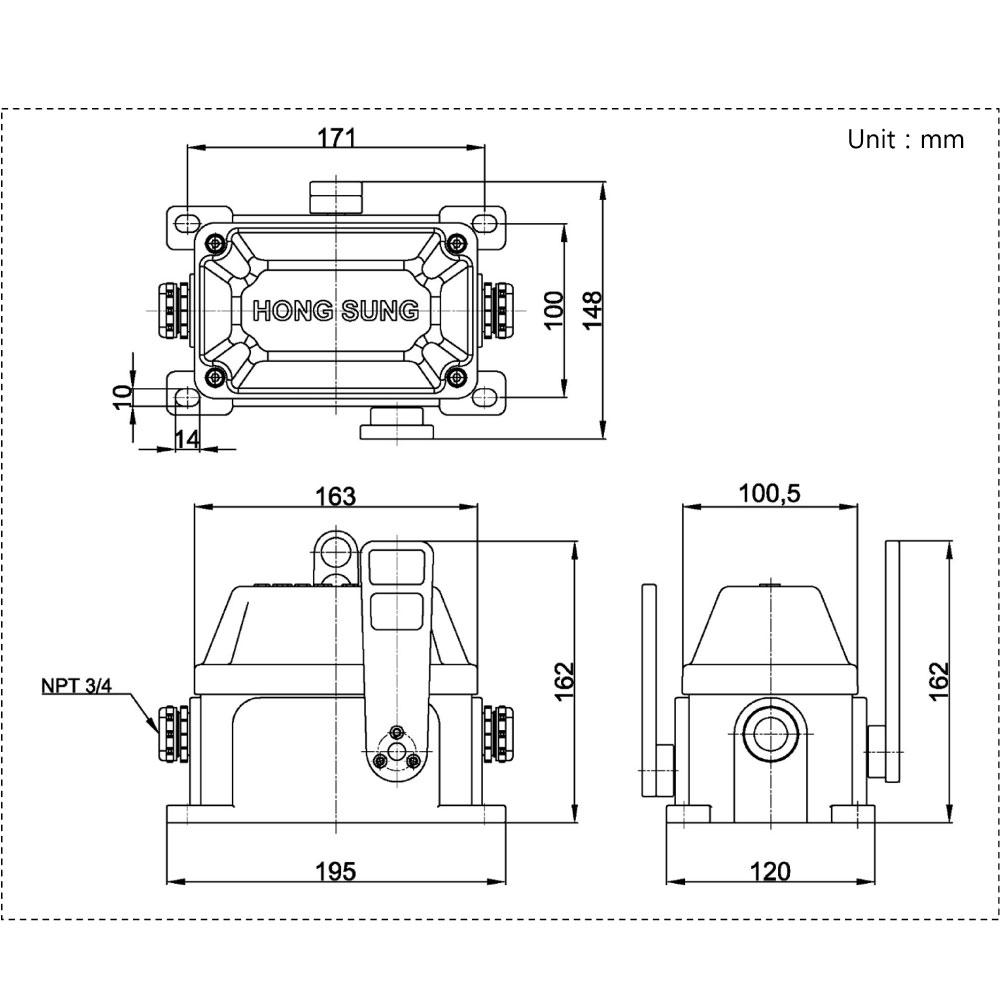

- The standard of inlet and outlet is PF3/4". Explosive cable grand (IP66 or higher) shall be used. Be careful not to seal the inlet and outlet, as this may cause water resistance.
- When disassembling and reassembling the cover for a wiring connection, tighten the bolts on each part as much as possible to maintain tightness.
- Installation that differs from electrical specifications can cause problems with the product. Use product as suitable specifications.
